Rural Estate Connectivity
Starlink • House, Workshop & Garage Wi-Fi • 15 Acres
A rural Starlink deployment for a 15-acre estate where dish placement, tree canopy, and secondary-building coverage mattered as much as the internet service itself.
At a Glance
- Where
- A 15-acre wooded estate in Warrenton, Fauquier County, VA, with a workshop and a detached garage.
- The problem
- 5 Mbps DSL with no realistic path to cable or fiber, and power flickers that kept resetting consumer equipment.
- Constraints
- A tree canopy on the south side that limited where the dish could go, and two outbuildings that needed coverage.
- What we did
- Starlink on a roof mount with a sealed cable entry, Wi-Fi 6 access points for the workshop and garage, and a UPS at the network core.
- What we observed
- 200+ Mbps in a speed test at commissioning, coverage in the house, workshop, and garage, and the network equipment on battery backup.
- How it was checked
- One speed test at commissioning; documented handoff in October 2025.
- Limits of this record
- One speed test on one day, not a promise of speed. 15 acres is the property's size, not its Wi-Fi coverage. The photographs on this page are representative, not from this property.
- Related service
- Starlink Installation · Discuss Your Project
Rural Property Owner • Remote Worker • Multi-Structure Estate
Timeline: 1 day
The Orbit ProtocolWhat the property needed
The estate had been living on 5 Mbps DSL for years with no realistic path to cable or fiber. The owner needed dependable connectivity for work, streaming, and property operations, but the real challenge was extending that service beyond the main structure across a large, tree-covered property.
The south side tree canopy constrained dish placement, the property covered 15 acres, and both a workshop and detached garage needed usable coverage. Rural power instability added another layer, since frequent flickers could reset consumer equipment and turn minor utility events into long outages.
What we did
We identified a Starlink position with workable sky exposure, used a professional roof mount and sealed cable entry, then extended service through WiFi 6 access points placed for the workshop and garage. A UPS was added at the core so the system would ride through the power behavior common in rural service areas.
The Orbit ProtocolHow the project ran, phase by phase
Every project follows the same four steps: look at the property, design, install, then test, explain, and hand over.
Understand the property
The survey covered the full 15-acre property with special attention to south-side canopy obstruction, likely dish positions, and whether usable WiFi could be extended to the workshop and garage without relying on guesswork. Rural power quality was also documented because it directly affected equipment choice.
Recommend a plan
The design balanced visibility to the sky with minimal canopy clearing, then mapped coverage where the client actually worked. Roof mounting, cable entry, and AP placement were planned together so the Starlink installation and the downstream LAN behaved as one system.
Install with care
The single-day install included the roof-mounted Gen 3 dish, targeted canopy clearing, extension of coverage to the outbuildings, UPS integration, and full sealing of exterior penetrations. Nothing was left as a temporary route or unfinished weather detail.
Test, explain, and hand over
Baseline performance was documented against the previous DSL service, and the client received the network map, credentials, and maintenance guidance needed to operate the system with confidence after handoff.
What changed, and how it was checked
A speed test at commissioning showed 200+ Mbps where the property had been on 5 Mbps DSL, Wi-Fi reached the house, workshop, and garage, and the network equipment was put on battery backup.
Limits of this record: One speed test on one day, not a promise of speed. 15 acres is the property's size, not its Wi-Fi coverage. The photographs on this page are representative, not from this property.
Before and after
| Metric | Before | After |
|---|---|---|
| Download Speed | 5 Mbps DSL | 200+ Mbps Starlink |
| Building Coverage | Main house only | House + workshop + garage |
| Power Resilience | Daily reboot on flicker | UPS backup at the network core |
From the installation

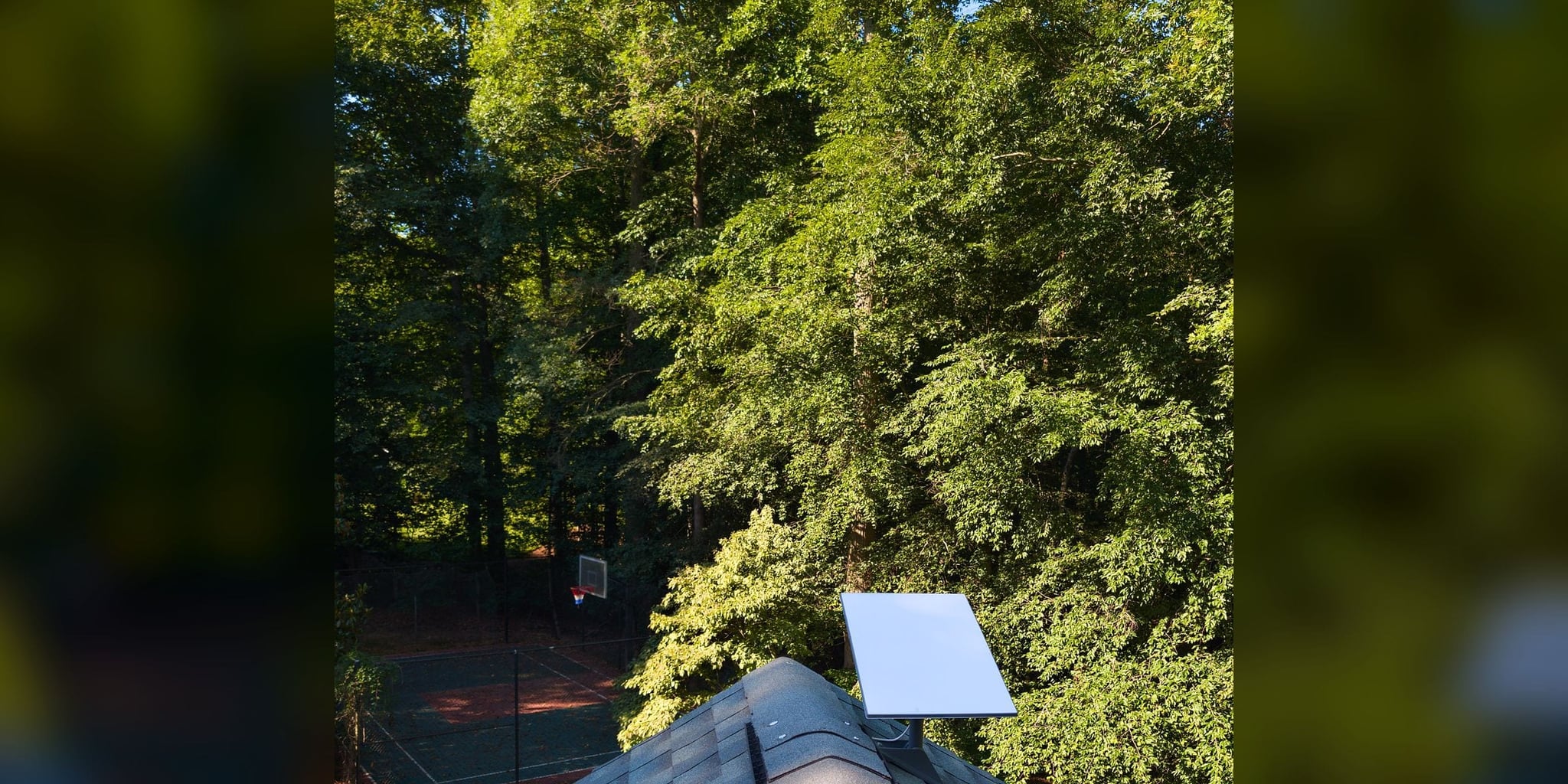

Roof mount set above the canopy line — the constraint this property turned on

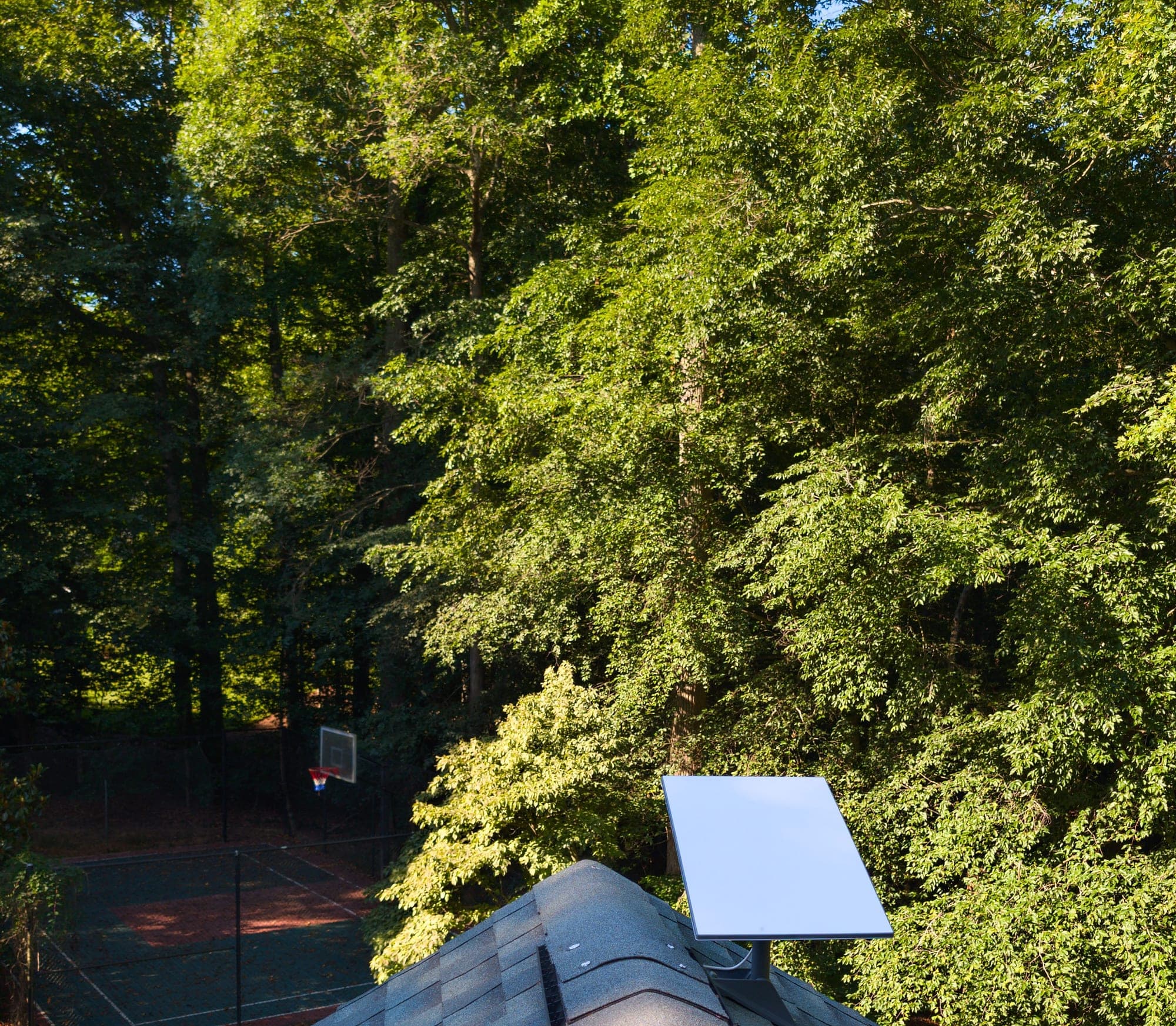

Dish position chosen against the surrounding tree line
Mounting on an outbuilding roof where the main structure has no clear sky
This deployment applies architecture documented across our service methodology:
Services Deployed
Equipment Manifest
- Starlink Standard Gen 3
- Professional Roof Mount
- UniFi AP WiFi 6 x3
- CyberPower UPS 750VA
